***RESERVED*** Custom Smart Mirror - DEPOSIT PAYMENT ONLY

Sale price Price $3,000.00 Regular price Unit price  per

Shipping calculated at checkout.

SMARTY MIRRORS DELIVERABLES:

     FRAMING, STAND, AND GLASS SPECIFICATIONS:

  • MirrorView 50/50 tempered glass – (curve design to be provided by client)

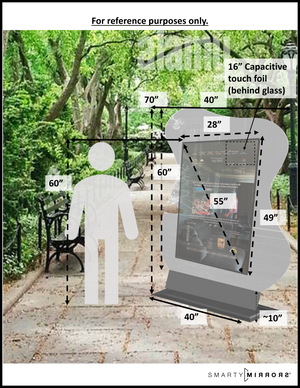

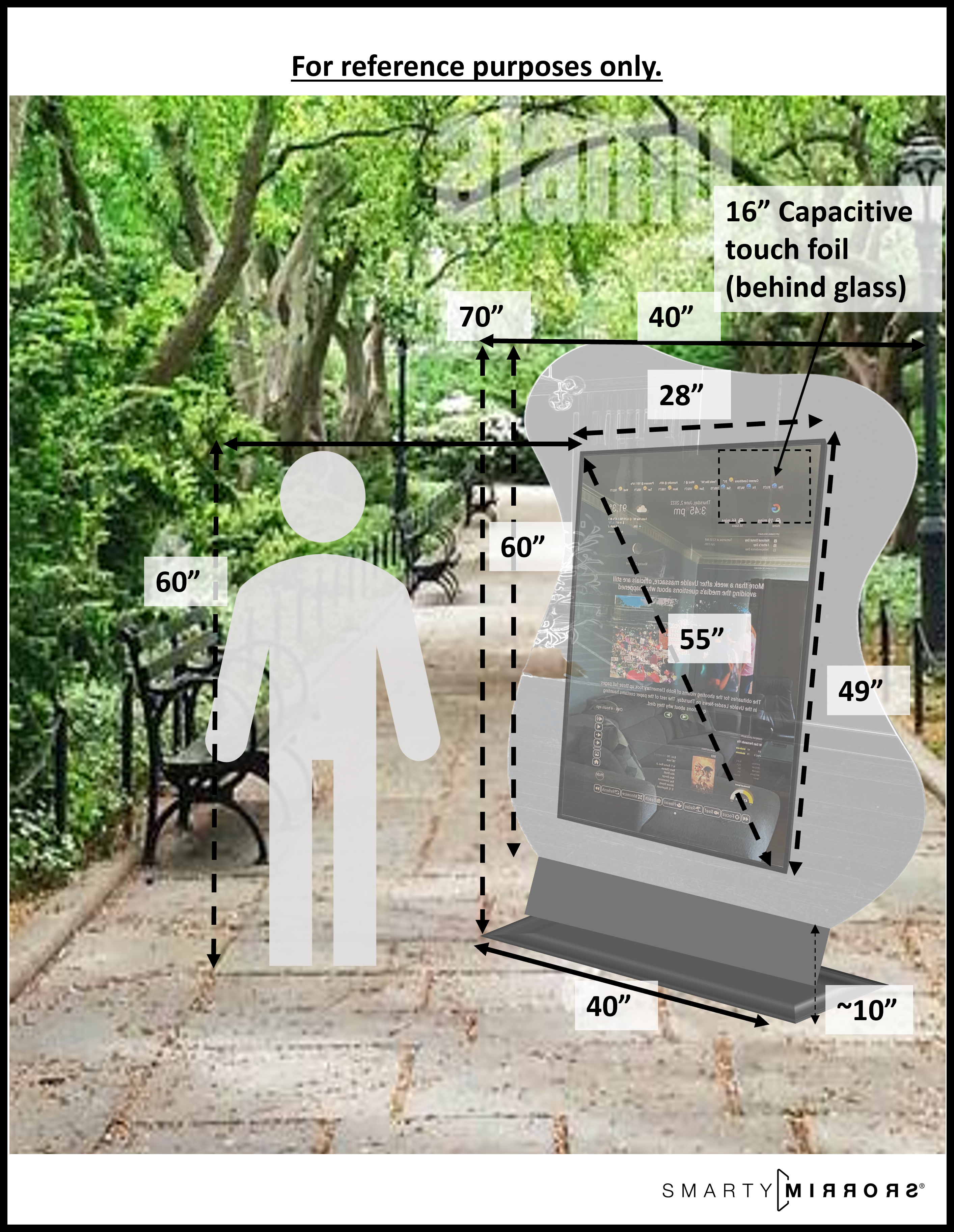

  • 60” X 40” – rough dimension of glass mirror without stand (final glass width and height TBD by client)
    • The shortest lengths (LXH) of the inside curves of the mirror must be a minimum of 53” X 32” to fit the 55” Samsung 4K display and casing
  • Back or front lighting (Specs TBD by client)
  • Case and stand/base:
    • Separate stand/base to be attached to case and mirror and assembled by client
    • Case and stand/base will look completely seamless and uniform with glass
    • Powder-coated steel case to house the display and computer (~2” depth)
    • Stand will conceal small wheels at the bottom of the base (total weight ~110lbs)
    • Back accessible to display and mini-PC with Velcro tabs at the top and hinges at the bottom
    • Locks for wheels and mirror case opening
    • 2X - 120mm Noctua fans for case– quietest on the market
    • All assembly and fabrication

     HARDWARE, TECH, AND PROGRAMMING:

  • 55” 4K Series 8 Samsung Smart TV Display (portrait orientation – 49” X 28”)
  • 16” touchscreen film behind glass for user touchscreen interaction (programming to be approved by client)
  • Custom programing – for touchscreen interaction with client-provided media assets
  • Windows 11 Mini PC, 11th gen N4500 processor (2.8GHz), and ‎Intel UHD Graphics card
    • WiFi 6, Bluetooth5.2, Gigabit Ethernet, Dual HDMI 4xUSB 3.0 ports
  • CAD drawings for mirror design and base
  • Product design iteration
  • Online walkthrough of final product and programming

     PACKAGING AND SHIPPING:

  • All required packaging in a 400-pound test box
  • Delivery date TBD (pending all client media assets received and final approval of drawings and programming by client at least two months prior to delivery date)
  • Ground handling, shipping, tracking, and insurance
  • Base and mirrors to be shipped separately and assembled by client (detailed instructions included)



CLIENT DELIVERABLES

  • Media assets
  • Programming approval at least two months prior to delivery date
  • Mirror and base CAD drawing approval at least two months prior to delivery date
  • Any changes to the above (under “Smarty Mirrors Deliverables”) that require additional time or cost will be assessed on a case-by-case basis and added to “Total Cost”.



PRICING:

  • All items listed under “Smarty Mirrors Deliverables”
    • Mirror materials, construction, display, and assembly:      $6300
    • Custom programming and CAD drawings:                          $900
    • Fabrication of stand:                                                           $1800
    • Packaging, handling, shipping, tracking, and insurance:     $500
                  Total Cost:                                                                            $9500
